SPECIFICATIONS

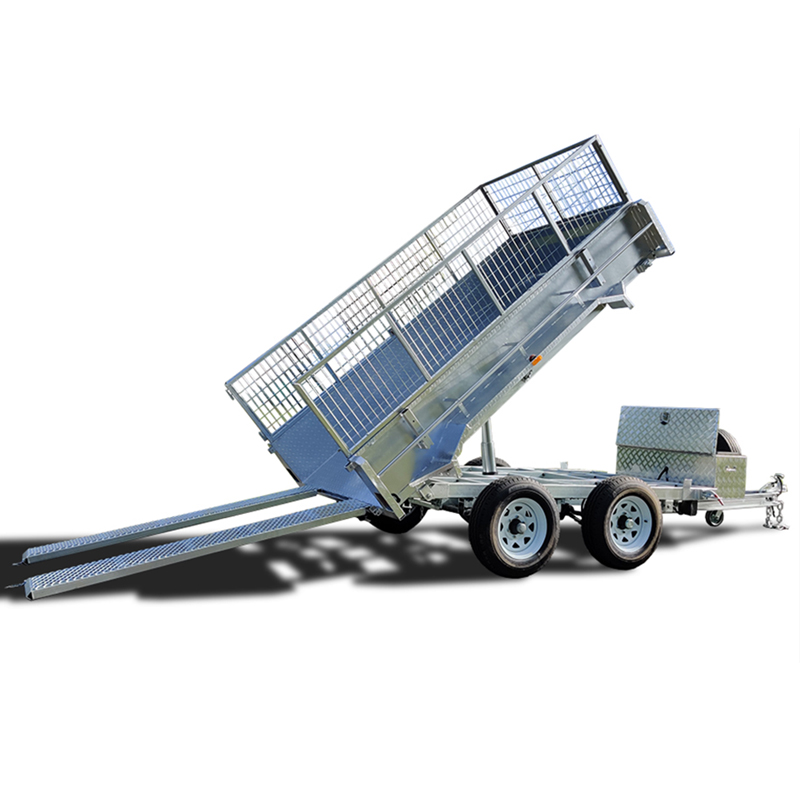

Model Number: HYDTBT3585
● ATM: 3500kg
● Tare: 1116kg(Exclude cage)
● Capacity: 2384kg
● Internal Trailer Size: 2440mm x 1530mm x 425mm
● Drawbar: 1900mm, 120mm x 52mm Structure C Chanel
● Hot Dipped Galvanised
● Fully Welded Body & Chassis
● Removable Front & Rear Drop Down Gates
● 120 AMP Deep Cycle Battery System, Australia Wide Warranty
● 3.5T 1m Hydraulic Cylinder with Hydraulic Power pack
● 1.68m 2Ton Under Body Slide Loading Ramps
● Flooring: Checker Plate Floor
● Tie Down Rails
● Axle: Dual Axle, 50mm Round Solid Axle
● Brake: 12” Electric Drum On Four Wheels
● Springs: 60mm 7 Leaf 7mm Rocker Roller
● Wheel Size: 15″
● Tyre Size: 195/R15C
● Coupling: 50mm 3500kg
● Jockey Wheel: 8” Swing up
● Tool Box: Aluminium
● Light: 12V-24V, LED
● Plug: 7 Pin, Flat/ Small Round/ Big Round
● 1 Year Limited Warranty
