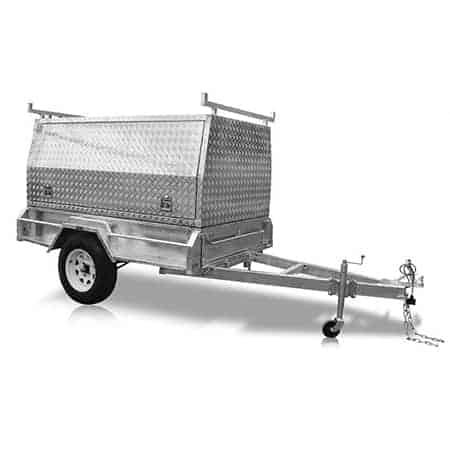

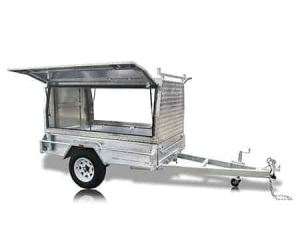

7×4 Tradesman ATM 750kg

8x5 Tradesman Trailer

8x5 Tradesman Trailer

*All pictures are for illustration only.

*Please select the parts and submit your quote

Canopy Shelving *

Spare Wheel *

Spare Wheel Holder *

Coupling Lock *

Aluminium Tool Box *

Aluminium Compressor Box *

Mower Pad *

Plug *

Please be advised:

We only accept orders in container loads; retail inquiries will not be considered.
Due to the increasing volatility in global shipping, we only operate on FOB Shanghai terms.

Category: Tradesman Trailers Tags: 7x4, Tradesman

SPECIFICATIONS

Chassis: 2180mm x 1235mm
Internal Trailer Size: 2100mm x 1230mm x 300mm
Side: 300mm high fully welded
Drawbar: 1600mm, 100mm x 50mm
Finish: Hot dip galvanised
Body: Tilt body, drop down rear panel
Flooring: Hot dip galvanised checkered plate floor
ATM: 750kg
Warranty: 12 months limited warranty

CANOPY SPECIFICATIONS

Maine Grade Alloy, 50521 High-Density Sheet 2.5 mm Checkered plate
Heavy duty construction
Length: 2180mm
Width: 1235mm
Height: 900mm
Warranty: MW Exclusive factory warranty

Configuration

Axle: 40mm solid round axle
Spring: 5 Leaf Eye to Eye Spring
Brake: N/A
Wheel: 185 R14C
Jockey Wheel: 6″ 750 lbs swing up
Coupler: 50 mm Australian Standard
Lights: LED
Light plug: Round or flat 7 pin
Safety chain: 2x 10mm
Ladder rack holders
Tie down rails all around
Mud Flaps
Full length checked plate step-up platform

Canopy Configuration

Extra internal bar braces for added strength
3 x Ladder Racks
3 x Full-size doors, 1 rear, 1 each side
Each door has dual gas struts for ease of opening & closing
Full-length piano hinges
Heavy duty T – handle locks
Fully rubber sealed, water & dust proof to keep your tools dry
2 x independent ladder racks on the trailer

Options

13″ Spare wheel
Standup wheel holder
Large toolbox
Heavy-duty mesh ramp customized
Ladder Racks
