8×5 Tandem Tradesman ATM 2000KG

10 x 6 Tandem Tradesman

The 10 x 5 Tandem Tradesman with one side door open

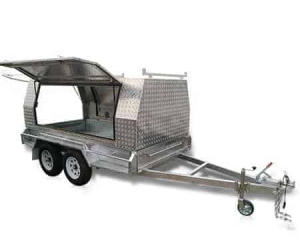

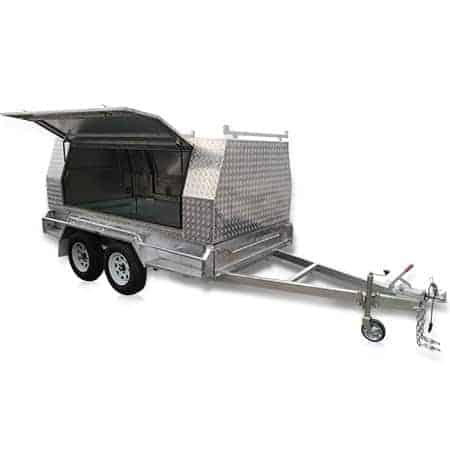

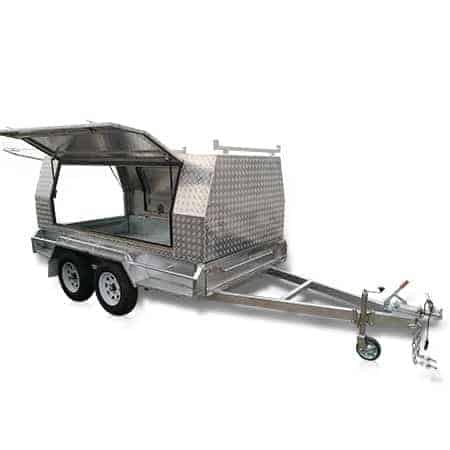

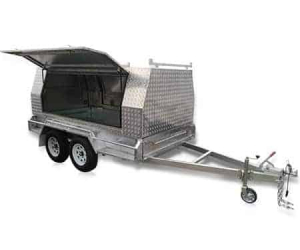

The 8 x 5 Tradesman with the side and rear door open

10 x 6 Tandem Tradesman

The 10 x 5 Tandem Tradesman with one side door open

The 8 x 5 Tradesman with the side and rear door open

*All pictures are for illustration only.

*Please select the parts and submit your quote

Canopy Shelving *

Spare Wheel *

Spare Wheel Holder *

Coupling Lock *

Aluminium Tool Box *

Aluminium Compressor Box *

Mower Pad *

Plug *

Please be advised:

We only accept orders in container loads; retail inquiries will not be considered.
Due to the increasing volatility in global shipping, we only operate on FOB Shanghai terms.

Category: Tradesman Trailers Tags: 8x5, Tandem, Tradesman

SPECIFICATIONS

Chassis: 2480mm x 1535mm
Internal Trailer Size: 2400mm x 1530mm x 300mm
Side: 300mm high fully welded
Drawbar: 1600mm, 100mm x 50mm
Finish: Checker plate Floor
Body: Drop down rear tailgate
Flooring: Hot gip galvanised checker plate floor
ATM: 2000kg
Warranty: 12 months limited warranty

CANOPY SPECIFICATIONS

Maine Grade alloy
Heavy duty construction
Length: 2480mm
Width: 1620mm
Height: 900mm
Warranty: MW Exclusive factory warranty

Configuration

Axle: Dual Axle, 50mm solid round axle
Spring: Heavy duty rocker roller spring
Brake: 10″ mechanical disc override brake
Wheel: 185 R14C
Jockey Wheel: 8″ 1500 lbs heavy duty swing up
Coupler: 50 mm heavy duty manual over ride braked coupling
Lights: LED
Light plug: Round or flat 7 pin
Safety chain: 2x 10mm
Ladder rack holders
Tie down rails all around
Mud Flaps
Full length checked plate step-up platform

Canopy Configuration

Extra internal bar braces for added strength
3 x Ladder Racks
3 x Full size doors, 1 rear, 1 eacb side
Each door has dual gas struts for ease of opening & closing
Full length piano hinges
Heavy duty T – handle locks
Fully rubber sealed, water & dust proof to keep your tools dry
2 x independent ladder racks on the trailer
