Container Order Warning

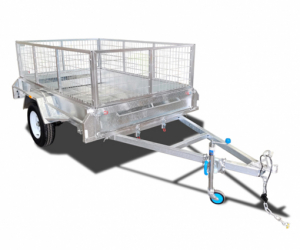

8×5 Tradesman ATM Trailer 750kg

*Please select the parts and submit your quote

Canopy Shelving *

Spare Wheel *

Spare Wheel Holder *

Coupling Lock *

Aluminium Tool Box *

Aluminium Compressor Box *

Mower Pad *

Plug *

Please be advised:

  • We only accept orders in container loads; retail inquiries will not be considered.
  • Due to the increasing volatility in global shipping, we only operate on FOB Shanghai terms.

Category: Tags: ,

SPECIFICATIONS

  • Chassis: 2480mm x 1535mm
  • Internal Trailer Size: 2400mm x 1530mm x 300mm
  • Side: 300mm high fully welded
  • Drawbar: 1600mm, 100mm x 50mm
  • Finish: Hot dip galvanised
  • Body: Tilt body, drop down rear panel
  • Flooring: Hot dip galvanised checkered plate floor
  • ATM: 750kg
  • Warranty: 12 months limited warranty

CANOPY SPECIFICATIONS

  • Maine Grade Alloy, 50521 High-Density Sheet 2.5 mm Checkered plate
  • Heavy duty construction
  • Length: 2480mm
  • Width: 1535mm
  • Height: 900mm
  • Warranty: MW Exclusive factory warranty

Configuration

  • Axle: 40mm solid round axle
  • Spring: 6 Leaf Eye to Eye Spring
  • Brake: N/A
  • Wheel: 185 R14C
  • Jockey Wheel: 6″ 750 lbs swing up
  • Coupler: 50 mm Australian Standard
  • Lights: LED
  • Light plug: Round or flat 7 pin
  • Safety chain: 2x 10mm
  • Ladder rack holders
  • Tie down rails all around
  • Mud Flaps
  • Full length checked plate step-up platform

Canopy Configuration

  • Extra internal bar braces for added strength
  • 3 x Ladder Racks
  • 3 x Full-size doors, 1 rear, 1 each side
  • Each door has dual gas struts for ease of opening & closing
  • Full-length piano hinges
  • Heavy duty T – handle locks
  • Fully rubber sealed, water & dust proof to keep your tools dry
  • 2 x independent ladder racks on the trailer

Options

  • 14″ Spare wheel
  • Standup wheel holder
  • Large toolbox
  • Heavy-duty mesh ramp customized
  • Ladder Racks
